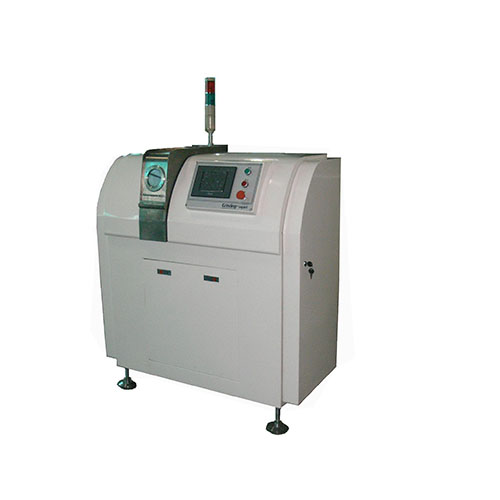

I-Wafer Grinder ye-Resin Material

I-Wafer Grinder ye-Resin Material

I-Wafer grinder ye-resin imathiriyeli ifaneleke kakhulu kwiimveliso ezinobulukhuni obuphezulu, ubukhulu obuncinci kunye neqondo eliphezulu lokuchaneka ngokuchaneka kunye nomgangatho womphezulu. Uyilo oludityanisiweyo olunolawulo oluphezulu kunye nokubekwa kweliso kwenkqubo kwenza lo matshini ulungele ukusetyenziswa kuphando nophuhliso okanye ukuveliswa komthamo ophantsi wamacandelo aphambili.Amagama aphambili:Ukwinqanaba Eliphambili, Abavelisi, Ifektri, Eyenziwe ngokwezifiso, eSitokhweni, kwiKowuti, ukuchaneka okuphezulu, ekulula ukugcina

Thumela ubuzo

Ingcaciso yeMveliso



1. Injongo ephambili ye-Wafer Grinder ye-Resin Material

Isila esisicaba seresin mi-aterial ifaneleke kakhulu kwiimveliso ezinobulukhuni obuphezulu, ubukhulu obuncinci kunye neqondo eliphezulu lokuchaneka ngokuchaneka kunye nomgangatho womphezulu. Uyilo oludityanisiweyo olunolawulo oluphezulu kunye nokubekwa kweliso kwenkqubo kwenza lo matshini ulungele ukusetyenziswa kuphando nophuhliso okanye ukuveliswa komthamo ophantsi wamacandelo aphambili.

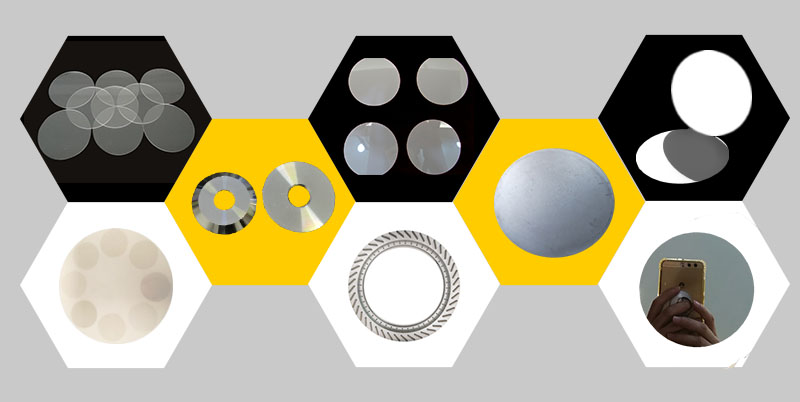

⢠Semiconductor wafer grindinge, mI-etal chip okanye ukucolwa ngasemva kwezinto eziphambili ezifana:
ï· SiC
ï· IiGas
ï· Isafire
ï· Si
ï· GaN
ï· AlN
ï· InP
ï· IGraphene
ï· izinto zentsimbi

ï· iplastiki


⢠Amalungu esixhobo seSemiconductor (iichuki zeceramic, iglasi ye-ULE)
⢠Iisubstrates zesemiconductor ekwipakeji ephucukileyo equka i-MEMS (i-ceramic, i-polyimide)



2. M.A.D. Iteknoloji


Oomatshini baxhotyiswe nge-DISCO okanye i-TENGYU yamavili okusila asekwe kwi-Mixed Abrasive Diamond Technology, elungelelanisa ukucaciswa kwevili kwi-wafer ecutshungulwayo ukuze isebenze kakuhle.


3. Iinketho zoLawulo oluPhezulu


Umatshini wokuSila othe tyaba weWafer uxhotyiswe ngolawulo olubonelela ngokunxiba ivili lokusila ngokuzenzekelayo, indawo ezenzekelayo yevili lokusila ngokunxulumene nomsebenzi, kunye nomlinganiselo wobunzima bomsebenzi. Ulawulo oluphezulu, ukuphuculwa kwenkqubo yokulinganisa ubukhulu kunye nempendulo kumjikelezo wokusila ngexesha langempela liyafumaneka. Oomatshini babonelela ngeenketho zobungqingqwa obuzenzekelayo: iingongoma ezininzi zoqhagamshelwano zivavanya ii-wafers ezininzi zokusila okanye ukhetho loqhagamshelwano okanye olungaqhagamshelwanga oluqhubekayo kwi-process measurement ye-wafer enye.

4. Izinto eziluncedo kwiWafer Grinder yeResin Material


1). Ubukhulu be-150-diameter wafer bunokuncitshiswa ukuya kwi-100um ubukhulu ngaphandle kokuphulwa.

2). Ukusebenza okuncinci kuphezulu, kwaye isantya sokugaya se-LED yesafire substrate sinokuncitshiswa ukuya kuthi ga kwi-48 microns ngomzuzu. Isantya sokusila se-silicon wafers sinokucuthwa ukuya kuma-250 microns ngomzuzu.




5. Izinto ozikhethelayo ezongezelelweyoï¼


1). Ivili lokusila ngokuzenzekelayo ukunxiba kwi-intanethi
2). Inkqubo yokulinganisa ubukhulu be-Intanethi

ï¼Sazisoï¼Ukuba ufuna ukufakela ezi zinto zimbini zingasentla, nceda ubeke phambili phambi kokuthenga isixhobo.ï¼


6. IParameter yobuGcisa ye-Wafer Grinder ye-Resin Material


UMZEKELO

I-TY-150WH

I-TY-200WH

TY-300WH

Ubungakanani bevili ledayimani

Φ150mm

Φ200mm

Φ250mm

Ubungakanani obukhulu bomsebenzi

Φ150mm

Φ200mm

Φ300mm

Isantya somsebenzi

0--800rpm

0--800rpm

0--800rpm

Isantya sevili

0--1800rpm

0--1800rpm

0--1800rpm

amandla ngokupheleleyo

2.2kw 220V

2.2kw 220V

2.2kw 220V

Ukucaba

2-3um

3-4um

3-5um

ukuhambelana

2-5um

3-5um

3-5um

Ukunyamezela ukutyeba

120um±2um

150um±3um

150um±3um

Ubungakanani

1200*550*1550

1350*600*1600

1500*700*1650

Ubunzima

850kg

920kg

950kg


7.Umzi-mveliso waseShenzhen Tengyu Grinding Technology Co., Ltd.







I-Shenzhen Tengyu Grinding Technology Co., Ltd. yayikwiSithili esitsha sase-Guangming, e-Shenzhen, e-China, kunye nenkunzi ebhalisiweyo ye-5 yezigidi ze-yuan, indawo yezityalo malunga ne-13,000 yeemitha ze-square. Lishishini elibandakanyeka kubuchwephesha bokusila kunye nokupholisha. Inkampani igxile kwi-R&D, imveliso kunye nokuthengiswa kwezixhobo zokusila ezichanekileyo eziphezulu, izixhobo zokuthambisa ezisicaba, izixhobo zokuthambisa ezikhawulezayo, izixhobo zokupolisha ze-3D kunye nezinto zayo ezixhasayo. Iimveliso zayo zisetyenziswa ngokubanzi ekusetyenzweni ngokuchanekileyo kwezitywina zoomatshini, unxibelelwano lwe-elektroniki, i-ceramics, i-semiconductors, i-crystals optical, i-aerospace, i-automold mold, i-LED, izixhobo zefowuni eziphathwayo, i-hardware kunye nezinye izinto. Isiseko sabathengi sisasazwa kulo lonke ilizwe nakwamanye amazwe, kwaye abameli bayo baquka iTF, MEEYA, Tongda Group, Hanslaser, kunye nezinye iinkampani ezininzi ezaziwayo.


8. FAQ

I-Q1: Ngaba uyinkampani yokurhweba okanye umenzi?
A: Singumenzi. Sinomzi-mveliso wethu kunye namagcisa anamava.

Q2: Ithini imiqathango yakho yokuhlawula?
A: T / T 30% njengediphozithi, kunye ne-70% ngaphambi kokunikezelwa. Siza kukubonisa iifoto zeemveliso kunye neepakethi phambi kokuba uhlawule imali eseleyo.

I-Q3: Ithini imimiselo yakho yokuhambisa kunye nexesha lokuhambisa?
A:EXW,FOB,CFR,CIF,DDU, etc.Ngokubanzi, kuya kuthatha iintsuku ezisi-7 ukuya kwezingama-20 emva kokufumana intlawulo yakho yangaphambili.Ixesha elithile lokuhanjiswa lixhomekeke kwizinto kunye nobungakanani beodolo yakho.

I-Q4: Ngaba unokubonelela ngenkxaso yetekhnoloji?
A: Sineminyaka engaphezu kwama-20 kweli candelo. Ukuba kukho nayiphi na ingxaki, nceda uqhagamshelane nathi, siya kubonelela ngeengcebiso kwinjineli yethu ukukunceda ukusombulula ingxaki.

I-Q5: Yintoni i-MOQ yeemveliso ezenziwe ngokwezifiso?
A: Singabavelisi kwaye sinokukunika i-MOQ encinci yeemveliso ezenziwe ngokwezifiso.

I-Q6: Ngaba uyazivavanya zonke iimpahla zakho ngaphambi kokuhanjiswa?
A: Ewe, zonke iimveliso ziya kuvavanywa phambi kokuhanjiswa.

I-Q7: Ulenza njani ishishini lethu ixesha elide kunye nobudlelwane obuhle?
IMPENDULO:Sigcina umgangatho olungileyo kunye nexabiso elikhuphisanayo ukuqinisekisa ukuba abathengi bethu bayaxhamla, kwaye siyabahlonipha bonke abathengi njengomhlobo wethu kwaye siqhuba ishishini ngokunyanisekileyo kwaye senza ubuhlobo nabo, nokuba basuka phi.

I-Q8: Ngaba kukho isiqinisekiso somgangatho?
A: Sinikeza unyaka omnye isiqinisekiso somgangatho. Sinoxanduva lomgangatho wezitywina zethu zoomatshini.
