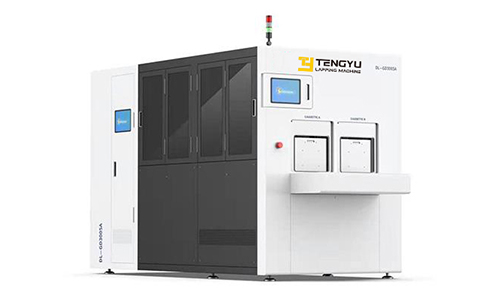

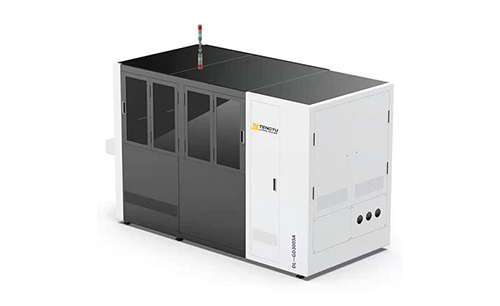

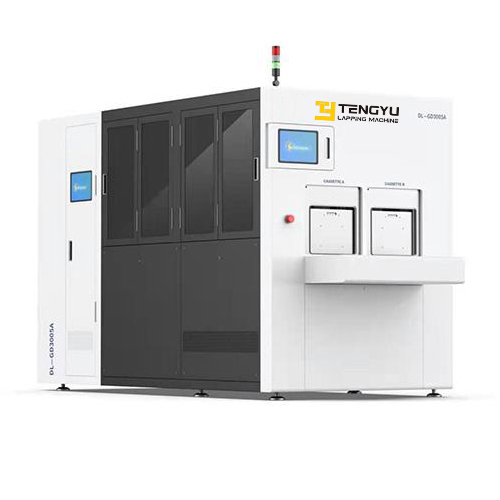

Oomatshini bokuSila be-Wafer obuchanekileyo obuphezulu

Oomatshini bokuSila be-Wafer obuchanekileyo obuphezulu

Oomatshini bokusila abathe nkqo abathe nkqo banokusila izixhobo zesemiconductor yesizukulwana sesithathu njengeSiC, GaN, GaAs, Si, ZnO. Uchungechunge lwe-DL-GSD ngumatshini wokusila owenziwe ngokwakho e-China, kwaye ukusebenza kwawo kuye kwafikelela kumgangatho wehlabathi.Amagama aphambili:Ukwinqanaba Eliphambili, Abavelisi, Ifektri, Eyenziwe ngokwezifiso, eSitokhweni, kwiKowuti, ukuchaneka okuphezulu, ekulula ukugcina

Thumela ubuzo

Ingcaciso yeMveliso

Le yigrinder/ipolisha esebenza kakuhle kakhulu yeewafers.


1. Yintoni enokwenziwa nguTOomatshini bokuSila abaNqobileyo abaNgcono abaNgqongileyo benza i¼


Oomatshini bokusila abathe nkqo abathe nkqo banokusila izixhobo zesemiconductor yesizukulwana sesithathu njengeSiC, GaN, GaAs, Si, ZnO. Uchungechunge lwe-DL-GSD ngumatshini wokusila owenziwe ngokwakho e-China, kwaye ukusebenza kwawo kuye kwafikelela kumgangatho wehlabathi.

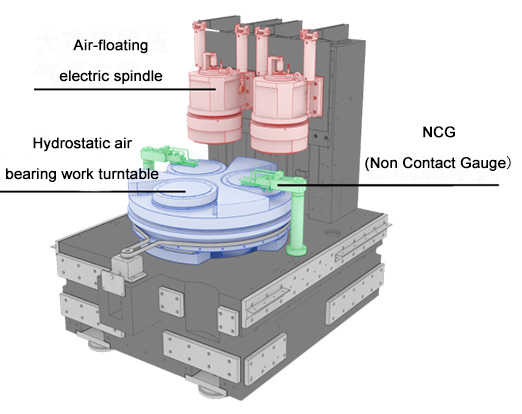

2. Baquka ntoni oomatshini bokuSila beWafer abaNgqo ngokuNgqo ngqo?

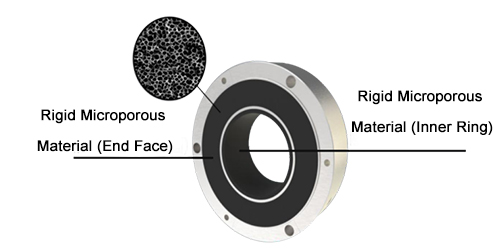

1). DL-ES55 Uthotho lwe-Hydrostatic air-floating electric spindleã

Izinto eziluncedo: Ukuthwala umoya kunokuqina okuphezulu, ukungcangcazela okuphantsi, ukwandiswa kwe-thermal ephantsi kunye nokutshintsha kwesantya esincinci.

I-spindle yombane edadayo emoyeni ithatha imathiriyeli eyomeleleyo ye-microporous njengebhloko yomoya ojikelezayo, kwaye ukuchaneka kwe-spindle, ubomi, ukungena komoya kunye nokuzinza kuphambili kwiimveliso zehlabathi.

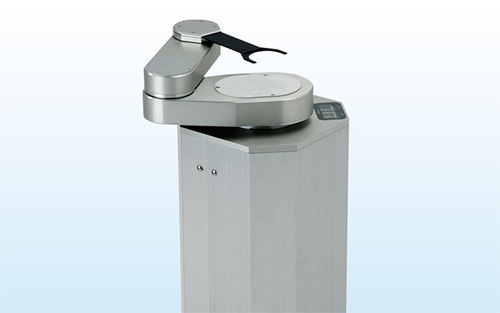

2). I-Manipulator



3). Hydrostatic air bearing work turntable

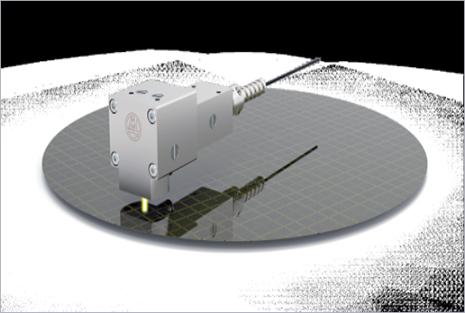

4). NCGï¼Non Contact Gaugeï¼
inzuzo:
Ukungaqhagamshelwa, nciphisa izinga lokuqhekeka
Ichaneke ngakumbi, inokulinganisa ubukhulu be-wafer emva kokuncamathisela
Ubalo: Ukuchaneka ⤠1 μm

Ukuphindaphinda 0.1 μm






3. Ukusebenza lula


Ixhotyiswe nge-touch-type liquid crystal display kunye ne-GUI (I-Graphical User Interface) ukuphucula ukusebenziseka lula. Isikrini sokulawula sinokubonisa ngaxeshanye isimo sokucubungula kunye nemeko yezixhobo.






4. Basebenza njani oomatshini bokuSila be-Wafer abaChanekileyo abaMphezulu?


1). Beka ikhasethi kwitafile yezinto eziphathekayo, kwaye itafile yezinto eziphathekayo ilungelelanisa ngokuzenzekelayo ikhasethi yesiqhekeza

2). I-manipulator ibamba i-wafer kwikhasethi ye-wafer kwaye idlulisele kwisigaba sesikhokelo se-wafer; Iqonga elikhokelayo libeka kwaye likhokela isiphambuka.
3). I-turntable engundoqo ijikeleza kwisikhululo A sokusila, i-NCG ibona ubukhulu be-wafer kwaye ibuyekeze ngokuzenzekelayo i-feed amountã
4). I-turntable engundoqo ijikelezisa kwisikhululo B ukupolisha, kwaye i-NCG ibona ubukhulu be-wafer kwaye ihlawule ngokuzenzekelayo isixa sesondlo.
5). I-turntable engundoqo ijikeleza kwisikhululo C ukuze icocwe kunye ne-dryingã

6). Irobhothi ibuyisela iwafa ecociweyo kwikhasethi yewafer.





5. IiNkcazelo zeOomatshini bokuSila be-Wafer obuchanekileyo obuphezulu


Inkcazo

Iyunithi

DSG200A

DSG300A

I-Wafer Diameter

intshi

4â, 6â, 8â

8â, 12â

Indlela Yokusila

-

Ukusila kwi-feed nge-wafer Rotation

Amavili Okugaya

mm

Ivili ledayimani (i-axis yokusila)

Iphedi yokupholisha

¼Iphepha le-CMP



Ivili ledayimani (i-axis yokusila)

Iphedi yokupholisha

¼Iphepha le-CMP



i-axis yokusila

amandla alinganisiwe

KW

~4

5.5

Isantya esilinganiselwe

r/min

1000~7000

1000~4000

Ukuchaneka

Ukucaba

Ndim

< 1.5

<3

uburhabaxa

Ndim

Ry 0.13(kunye #2000 ukugqiba)

Ry 0.15(kunye #1400 ukugqiba)

Imilinganiselo yomatshini (WxDxH)

mm

2500x4500x1800

Ubunzima

IKG

Malunga.4000IKG

Malunga.5000IKG

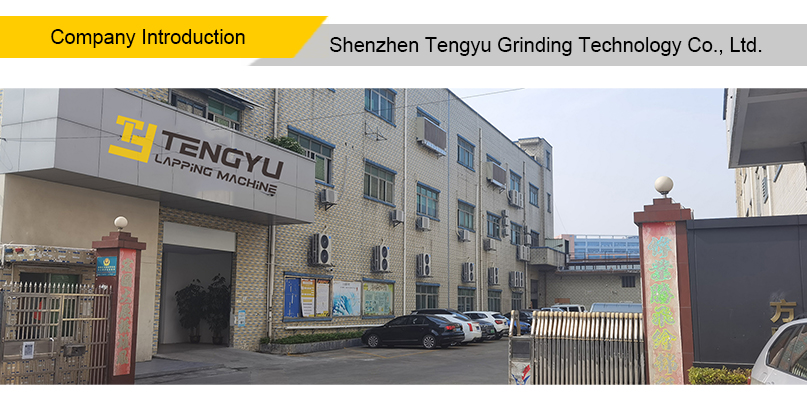

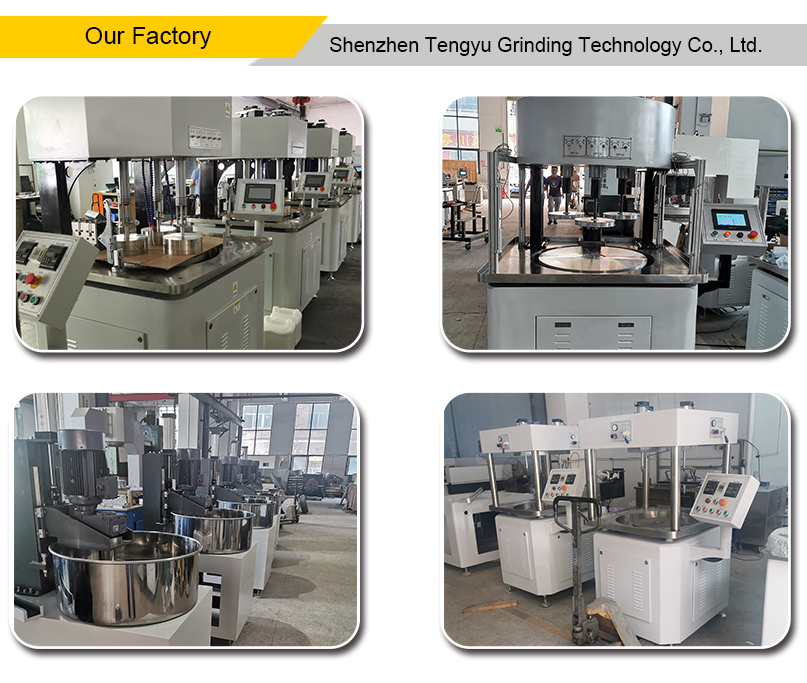

6.Umzi-mveliso waseShenzhen Tengyu Grinding Technology Co., Ltd.







I-Shenzhen Tengyu Grinding Technology Co., Ltd. yayikwiSithili esitsha sase-Guangming, e-Shenzhen, e-China, kunye nenkunzi ebhalisiweyo ye-5 yezigidi ze-yuan, indawo yezityalo malunga ne-13,000 yeemitha ze-square. Lishishini elibandakanyeka kubuchwephesha bokusila kunye nokupholisha. Inkampani igxile kwi-R&D, imveliso kunye nokuthengiswa kwezixhobo zokusila ezichanekileyo eziphezulu, izixhobo zokuthambisa ezisicaba, izixhobo zokuthambisa ezikhawulezayo, izixhobo zokupolisha ze-3D kunye nezinto zayo ezixhasayo. Iimveliso zayo zisetyenziswa ngokubanzi ekusetyenzweni ngokuchanekileyo kwezitywina zoomatshini, unxibelelwano lwe-elektroniki, i-ceramics, i-semiconductors, i-crystals optical, i-aerospace, i-automold mold, i-LED, izixhobo zefowuni eziphathwayo, i-hardware kunye nezinye izinto. Isiseko sabathengi sisasazwa kulo lonke ilizwe nakwamanye amazwe, kwaye abameli bayo baquka iTF, MEEYA, Tongda Group, Hanslaser, kunye nezinye iinkampani ezininzi ezaziwayo.


7. FAQ

I-Q1: Ngaba uyinkampani yokurhweba okanye umenzi?
A: Singumenzi. Sinomzi-mveliso wethu kunye namagcisa anamava.

Q2: Ithini imiqathango yakho yokuhlawula?
A: T / T 30% njengediphozithi, kunye ne-70% ngaphambi kokunikezelwa. Siza kukubonisa iifoto zeemveliso kunye neepakethi phambi kokuba uhlawule imali eseleyo.

I-Q3: Ithini imimiselo yakho yokuhambisa kunye nexesha lokuhambisa?
A: I-EXW, i-FOB, i-CFR, i-CIF, i-DDU, njl. Ngokuqhelekileyo, kuya kuthatha i-7 kwiintsuku ze-20 emva kokufumana intlawulo yakho yangaphambili.Ixesha elithile lokuhambisa lixhomekeke kwizinto kunye nobuninzi be-oda yakho.

I-Q4: Ngaba unokubonelela ngenkxaso yetekhnoloji?
A: Sineminyaka engaphezu kwama-20 kweli candelo. Ukuba kukho nayiphi na ingxaki, nceda uqhagamshelane nathi, siya kubonelela ngeengcebiso kwinjineli yethu ukukunceda ukusombulula ingxaki.

I-Q5: Yintoni i-MOQ yeemveliso ezenziwe ngokwezifiso?
A: Singabavelisi kwaye sinokukunika i-MOQ encinci yeemveliso ezenziwe ngokwezifiso.

I-Q6: Ngaba uyazivavanya zonke iimpahla zakho ngaphambi kokuhanjiswa?
A: Ewe, zonke iimveliso ziya kuvavanywa phambi kokuhanjiswa.

I-Q7: Ulenza njani ishishini lethu ixesha elide kunye nobudlelwane obuhle?
IMPENDULO:Sigcina umgangatho olungileyo kunye nexabiso elikhuphisanayo ukuqinisekisa ukuba abathengi bethu bayaxhamla, kwaye siyabahlonipha bonke abathengi njengomhlobo wethu kwaye siqhuba ishishini ngokunyanisekileyo kwaye senza ubuhlobo nabo, nokuba basuka phi.

I-Q8: Ngaba kukho isiqinisekiso somgangatho?
A: Sinikeza unyaka omnye isiqinisekiso somgangatho. Sinoxanduva lomgangatho wezitywina zethu zoomatshini.
